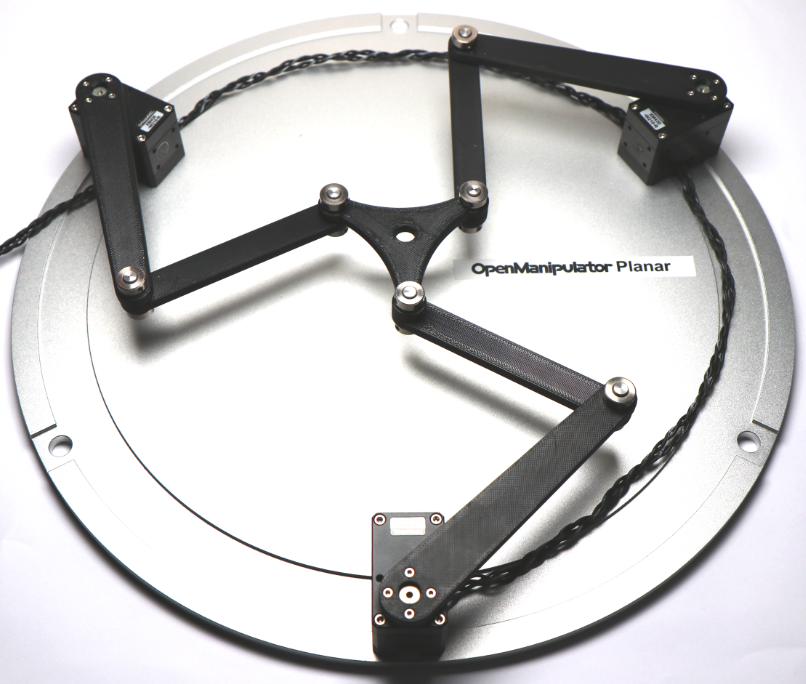

# 14.3.1. 規格

<div align="left"><img src="https://3058168660-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LkXc5k_SFaP9gK2gsU8%2F-LmID1fP6m_N060NkwsM%2F-LmIIRtUchfsT7ejlhEO%2FOpenManipulator_Planar_Capture.png?alt=media&#x26;token=ad00c410-3f97-49b5-9daf-e0d2c188d8e8" alt=""></div>

| Items               | Unit |                                    |
| ------------------- | ---- | ---------------------------------- |
| **Actuator**        |      | Dynamixel XM430-W350-T             |
| **Input Voltage**   | V    | 12                                 |
| **DOF**             | -    | 3                                  |
| **Speed(Joint)**    | RPM  | 46                                 |
| **Communication**   | -    | TTL (Level Multidrop BUS)          |
| **Software**        | -    | Dynamixel SDK, Arduino, Processing |
| **Main Controller** | -    | PC, OpenCR                         |
